Introduction

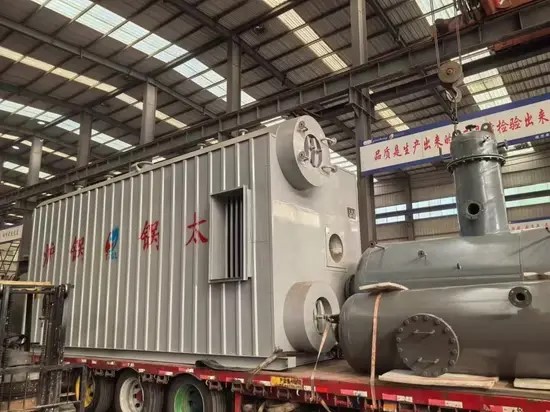

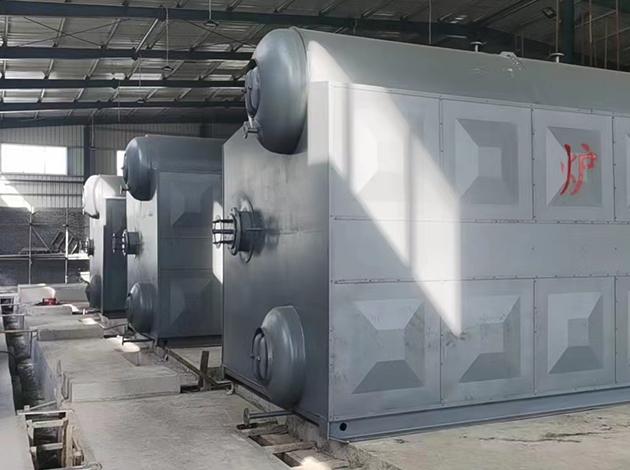

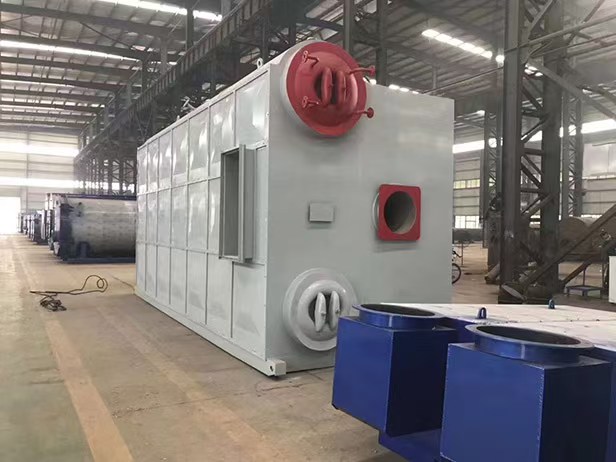

The SZS series gas & oil fired double drum boiler adopts a D-type layout with membrane water wall structure. The boiler body and economizer are delivered in modules for easy installation and high quality assurance. With micro-positive pressure combustion, advanced burners, and automatic control system, it achieves high thermal efficiency, reliable operation, and excellent safety performance, suitable for industrial steam and heating applications.
Features
1. D-type double-drum design with compact structure and high safety
2. Membrane wall construction ensures minimal heat loss and long durability
3. High-efficiency burner for low fuel consumption and low emissions
4. Modular design for convenient installation and maintenance, low boiler room investment
5. Intelligent automatic control with multi-level protection system
Project Cases
Our boilers are exported worldwide and trusted by customers in Asia, Europe, Africa, and South America. With rich export experience, we deliver efficient and customized solutions, earning a strong reputation for quality and service.
Why Choose Us?
Founded in 1976, Taiguo Boiler is National Designated A-Class Boiler Manufacturer to produce Class A boilers and D1/D2 pressure vessels, offering customized solutions from design to installation and commissioning, including boiler room planning.
Customer Visit
| Model | Rated Evaporation (t/h) |
Working Pressure (Mpa) |
Fuel Consumption | Overall Dimension (mm) |
Maximum Weight for Transportation (t) |
|
| Light Oil (kg/h) | Natural Gas (Nm3/h) | |||||
| SZS10-1.25-Y(Q) | 10 | 1.25 | 646 | 806 | 7.2×3.4×3.3 | 36.7 |
| SZS15-1.0-Y(Q) | 15 | 1 | 1043 | 1209 | 7.1×3.7×3.5 | 38 |
| SZS20-1.25-Y(Q) | 20 | 1.25 | 1165 | 1403 | 10.8×7×4.8 | 41 |
| SZS25-2.45-Y(Q) | 25 | 2.45 | 1458 | 1773 | 10.8×7×4.8 | 60 |
| SZS30-1.25-Y(Q) | 30 | 1.25 | 1718 | 2092 | 12.9×7×4.8 | 64 |
| SZS35-2.45-Y(Q) | 35 | 2.45 | 2048 | 2468 | 12.9×7×4.8 | 68 |
| SZS50-2.45-Y(Q) | 50 | 2.45 | 3218 | 3878 | 13.2×12×4.7 | - |
