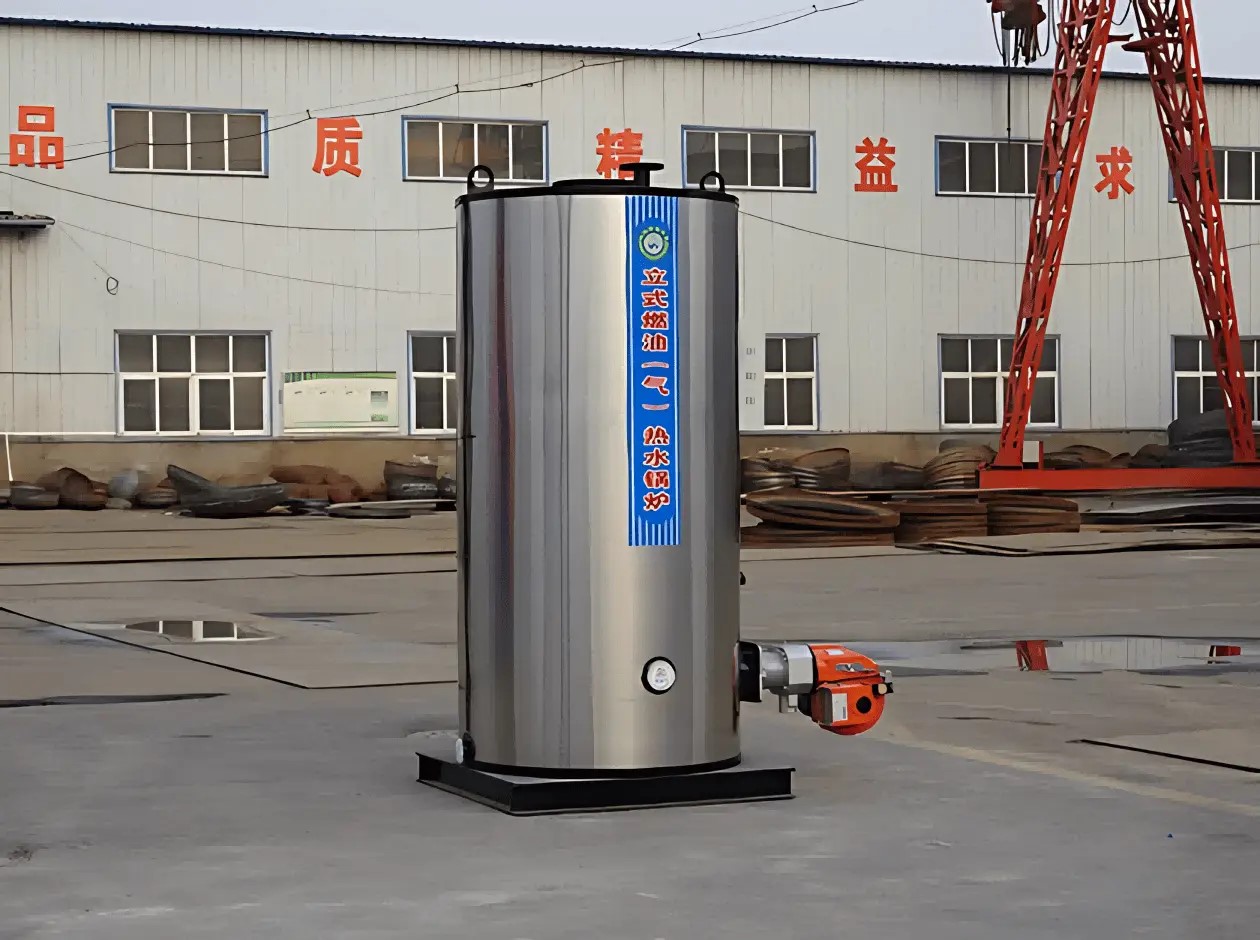

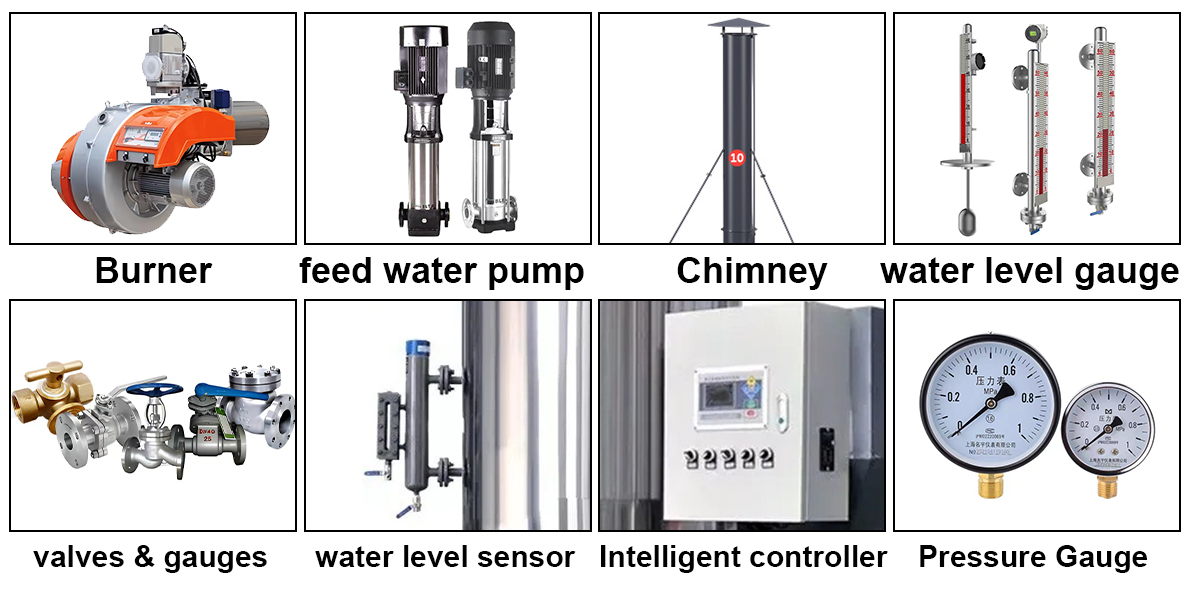

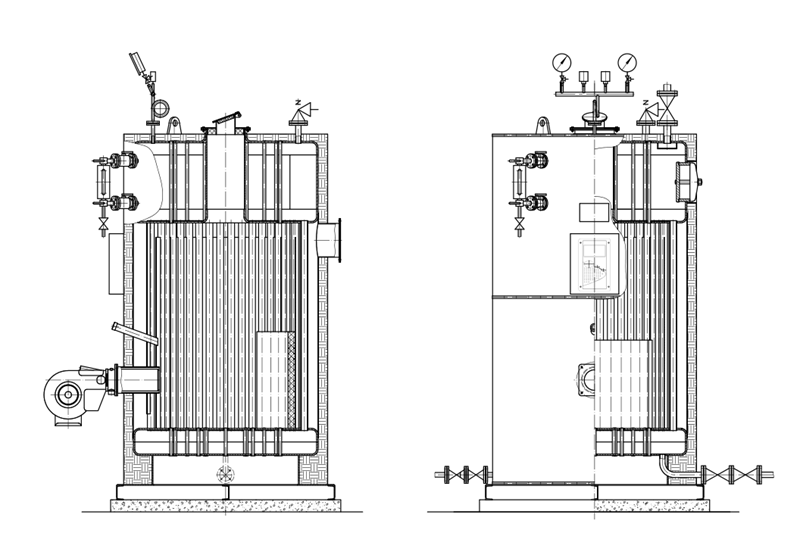

The LHS series steam boiler features a compact vertical fire-tube design with a large combustion chamber for complete fuel combustion. Inserted flue tubes slow gas flow and reduce exhaust temperature. Equipped with a pressure relief valve, water level controls, and pressure gauge, it ensures stable, reliable steam production. With fast steam generation, low fuel consumption, high steam quality, and ample heating surfaces, it delivers excellent thermal efficiency. Ideal for small industrial applications, including food processing, manufacturing, and hospitality.
Note: Optional Dual-Fuel Steam Generator (Oil/Gas & Biomass)
Features
1. Suitable for natural gas, LPG, light diesel and other clean fuels.
2. Small footprint, factory pre-installed, easy and fast installation.
3. One-button start with automatic control and alarm functions; supports unattended operation.
4. Six-level interlock protection for safe and reliable running.
5. Manufactured with certified boiler-grade steel and strict quality inspection.
6. Advanced steam-water separation design with steam dryness up to 97%.
| Item/ Model | LHS0.1 | LHS0.2 | LHS0.3 | LHS0.5 | LHS0.75 | LHS1.0 | LHS1.5 | LHS2 | LHS3 | ||
| Capacity | kg of steam per hour | 100 | 200 | 300 | 500 | 750 | 1000 | 1500 | 2000 | 3000 | |
| HP | 6.4 | 12.8 | 19 | 32 | 48 | 64 | 96 | 128 | 190 | ||
| Pressure | Bar | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | |
| Steam Temperature | ℃ | ≤180 | ≤180 | ≤180 | ≤180 | ≤180 | ≤180 | ≤180 | ≤180 | ≤180 | |
| Available Fuels | / | Heavy oil, diesel, natural gas, LPG, etc. |
|||||||||
| Thermal Efficiency | % | ＞92 | |||||||||
Why Choose Us?
Founded in 1976, Taiguo Boiler is National Designated A-Class Boiler Manufacturer to produce Class A boilers and D1/D2 pressure vessels, offering customized solutions from design to installation and commissioning, including boiler room planning.
Project Cases
Our boilers are exported worldwide and trusted by customers in Asia, Europe, Africa, and South America. With rich export experience, we deliver efficient and customized solutions, earning a strong reputation for quality and service.
