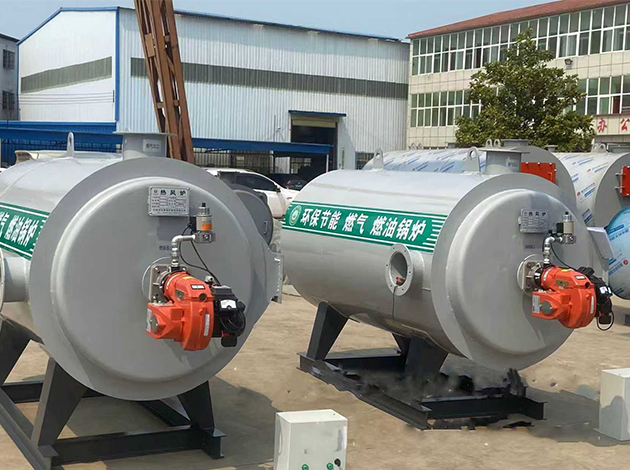

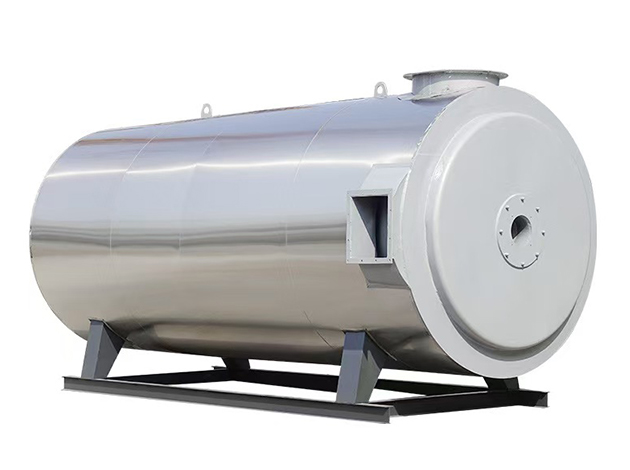

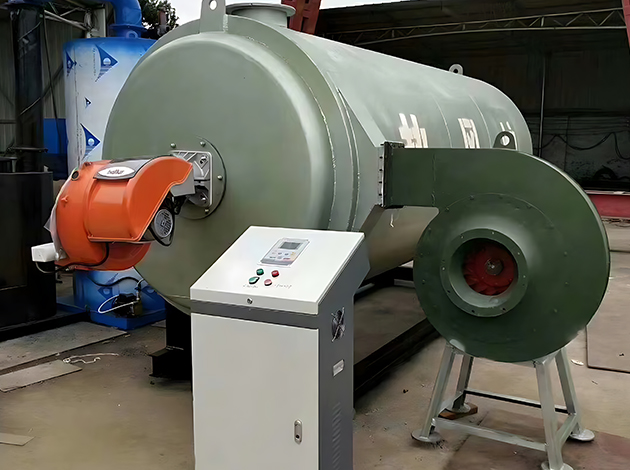

WRF Horizontal Hot Air Furnace
Thermal power : 0.12-3.5MW

Applicable temperature : 60-300℃

Thermal Efficiency : 90-95%

Rated Working Pressure(MPa):Atmospheric pressure

Application Field : Chemical, food, feed, factory, agriculture, heating, etc

-----------------------------------------------

Whatsapp:8613276906791

Email:taiguoemily@cnboilers.com

Quick Details

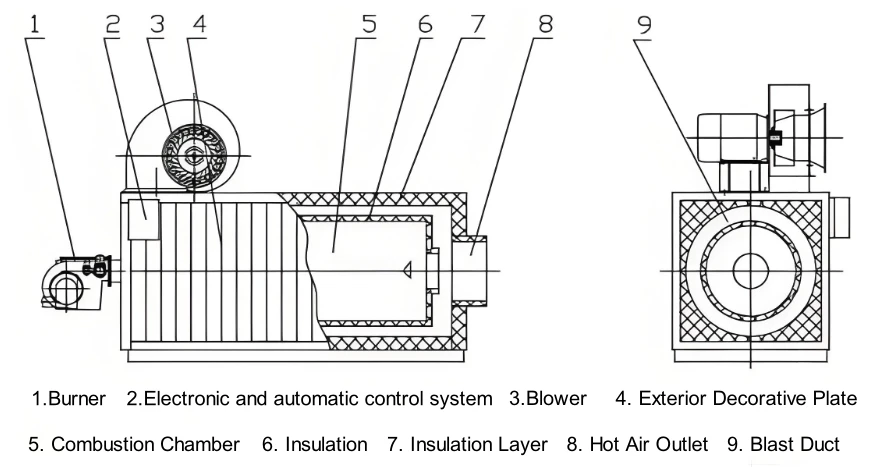

WRF series oil/gas hot air furnace uses diesel or natural gas as fuel and air as the heat carrier, delivering clean hot air via forced circulation. It adopts multi-layer spiral groove heat exchange and turbulence technology to enhance heat transfer, while the inner tank design keeps heated air isolated from flue gas for clean output.

1. Fast startup and full combustion with low NOx emissions.

2. Intelligent controller with precise temperature control, LCD display, over-temperature protection, and fault alarms.

3. Multi-layer spiral heat exchange provides high efficiency, low resistance, and long service life.

4. Stainless steel exterior is attractive, rust-free, and durable.


Parameters
Model
WRF-10-YQ
WRF-30-YQ
WRF-60-YQ
WRF-80-YQ
WRF-100-YQ
WRF-150-YQ
WRF-200-YQ
WRF-300-YQ
Rated power(MW)
0.12
0.35
0.7
1.05
1.2
1.7
2.4
3.5
Applicable temperature(℃)
60-300
60-300
60-300
60-300
60-300
60-300
60-300
60-300
thermal efficiency(%)
86
86
86
86
86
86
86
86
Fuel
consumption
Natural gas(m3/h)
15
46
93
124
155
232
310
464
Liquid gas(m3/h)
12
37
74
99
124
186
248
371
City gas(m3/h)
33
98
195
260
325
488
650
975
Light diesel(Kg/h)
13
38
76
102
127
191
255
382
heavy oil(Kg/h)
13
39
78
104
130
195
260
390
Transport reference weight(T)
1.2
2
3.7
4.5
5.5
7.2
11
16
Transport reference dimensio
Long
2400
2400
3700
4200
7500
5500
6200
6700
Wide
1200
1400
1700
1900
2000
2100
2300
2600
High
1500
1800
2100
2300
3333
2500
2800
3000
