LHG series steam boiler adopts 3pass and firetube design, equipped with low-noise blower and induced draft fan, boiler's thermal efficiency is up to 85%.

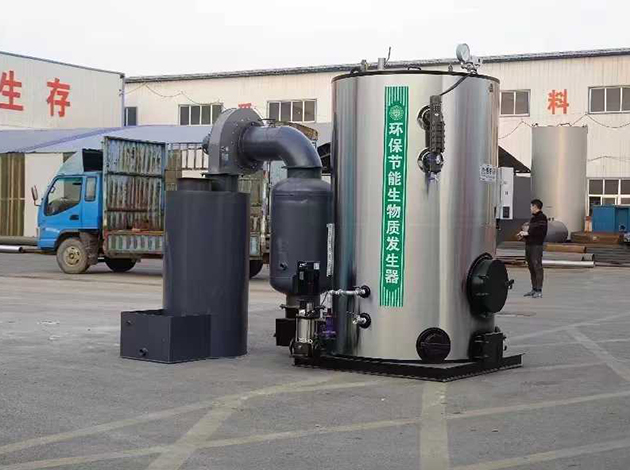

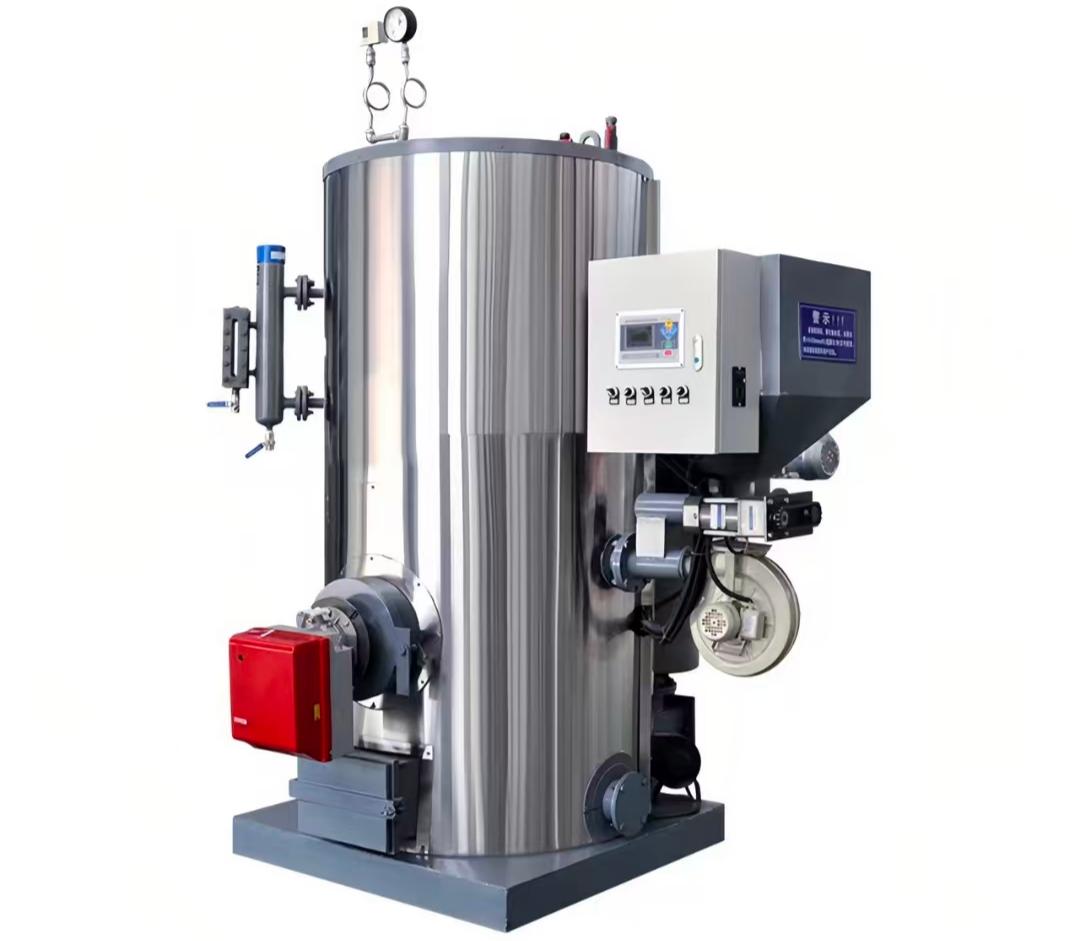

LHG gas–biomass dual-purpose steam generator offers fuel costs about 30% of natural gas. With an LCD microcomputer control system, it operates automatically once water and power are connected. Equipped with pressure and safety protections, it ensures safe use without specialized operators. The pre-assembled unit only requires basic connections, reducing installation costs, its modular design allows multiple units to be combined to meet steam demands of up to 2 tons per hour..
Features
Applicable fuels: wood, coal, biomass pellets. Fuel addition can be done manually or automatically. Environmental protection: This boiler is equipped with an advanced flue gas filter, achieving smokeless and dust-free emissions. High thermal efficiency: Three-pass fire-tube design, equipped with low-noise fans and induced draft fans.
| Model | LHG0.3 | LHG0.5 | LHG0.7 | LHG1 | LHG1.5 | LHG2 | LHG3 |
| Steam Capacity | 300 KG/H | 500 KG/H | 700 KG/H | 1000 KG/H | 1500 KG/H | 2000 KG/H | 3000 KG/H |
| Working Pressure | ≤10Bar | ≤10Bar | ≤10Bar | ≤10Bar | ≤10Bar | ≤10Bar | ≤10Bar |
| Steam Temperature | ≤184℃ | ≤184℃ | ≤184℃ | ≤184℃ | ≤184℃ | ≤184℃ | ≤184℃ |
| Available Fuel | Wood, Biomass pellet, Coal Palm shell, Peanut shells, Sugar cane dregs, etc. | ||||||
| Smoke/ Dust Purification Method | Water film purification | ||||||
Why Choose Us?
Founded in 1976, Taiguo Boiler is National Designated A-Class Boiler Manufacturer to produce Class A boilers and D1/D2 pressure vessels, offering customized solutions from design to installation and commissioning, including boiler room planning.
