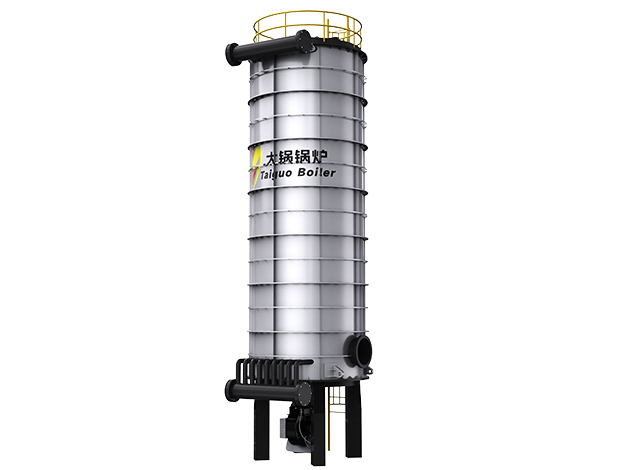

YYQL series oil/gas thermal oil boiler features a double-pass circular coil design, with a tapered coil end that provides effective protection for the furnace wall. Equipped with an advanced burner system, the unit operates with full automation. Delivered as a complete assembly, the boiler requires only the connection of fuel and power on site before it is ready for immediate operation.
| Model | Rated thermal power (kW) | Rated thermal power (×104kcal/h) | Design working temperature (≤℃) | Rated working pressure (bar) | Thermal efficiency (≥%) | System installation power (KW) | Maximum transport dimension (m) |
| YQL-7000Q | 7000 | 600 | 320 | 8 | 95 | 140 | 8.0×3.6×4.0 |
| YQL-8200Q | 8200 | 700 | 320 | 8 | 95 | 140 | 8.5×3.7×4.0 |
| YQL-9400Q | 9400 | 800 | 320 | 10 | 95 | 200 | 9.5×3.8×4.0 |
| YQL-10500Q | 10500 | 900 | 320 | 10 | 95 | 200 | 10.5×3.8×4.0 |
| YQL-12000Q | 12000 | 1000 | 320 | 10 | 95 | 240 | 12.4×3.8×4.0 |
| YQL-14000Q | 14000 | 1200 | 320 | 10 | 95 | 320 | 13.5.×4.0×4.2 |
| YQL-16500Q | 16500 | 1400 | 320 | 10 | 95 | 380 | customized size |
| YQL-18000Q | 18000 | 1600 | 320 | 10 | 95 | 450 | customized size |
| YQL-21000Q | 21000 | 1800 | 320 | 10 | 95 | 520 | customized size |
| YQL-23300Q | 23300 | 2000 | 320 | 10 | 95 | 600 | customized size |
| YQL-26000Q | 26000 | 2200 | 320 | 10 | 95 | 700 | customized size |
| YQL-29200Q | 29200 | 2500 | 320 | 10 | 95 | 825 | customized size |
Why Choose Us?
Founded in 1976, Taiguo Boiler is National Designated A-Class Boiler Manufacturer to produce Class A boilers and D1/D2 pressure vessels, offering customized solutions from design to installation and commissioning, including boiler room planning.

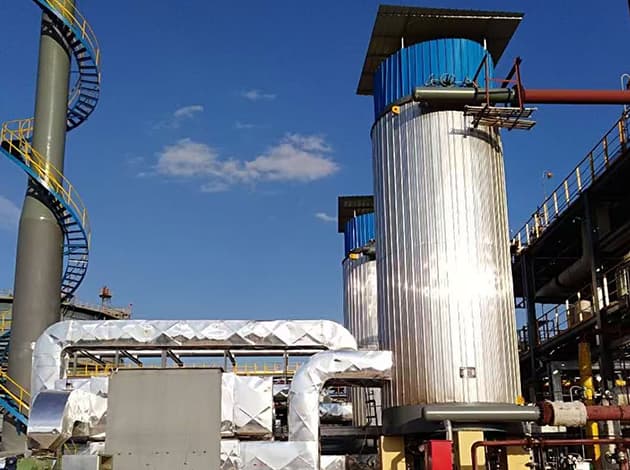

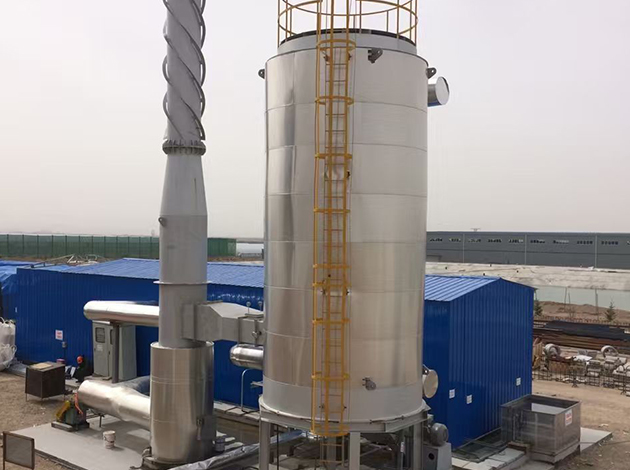

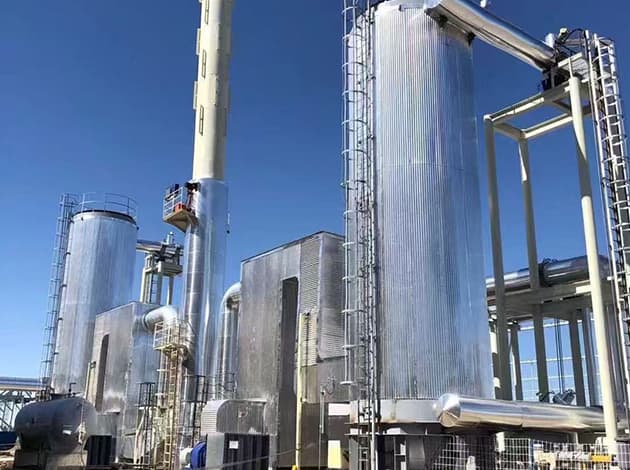

Project Cases
